NetSuite REST

NetSuite REST enables companies to manage all key business processes within a single online system.

Overview

Companies use NetSuite REST for enterprise resource planning (ERP) and to manage inventory, track their financials, host e-commerce stores and maintain customer relationship management (CRM) systems. This flexible platform can be applied to a range of business applications.

API Information

The Base URL used for the NetSuite REST connector is https://{account-id}.suitetalk.api.netsuite.com. More information can be found on their main API documentation (v1.0) at the NetSuite REST documentation site.

Authentication

Migration from v4.0 to v5.0

If you're upgrading from version 4.0 to 5.0, here's what has changed:

v4.0 Field	v5.0 Field	Change
Company	Account ID	✅ Renamed - same value, clearer name
Consumer Key / Client Id	Client ID	✅ Same - terminology updated
Consumer Secret / Client Secret	Client Secret	✅ Same - terminology updated
N/A	Certificate ID	✅ New Required - Certificate ID from NetSuite M2M integration
N/A	Certificate(Private Key)	✅ New Required - Private key for JWT authentication

What you need to do:

1. Set up M2M authentication in NetSuite

   • Enable OAuth 2.0 Client Credentials with Certificate-Based Authentication
   • Generate public/private key pair (see Certificate Generation Guide)

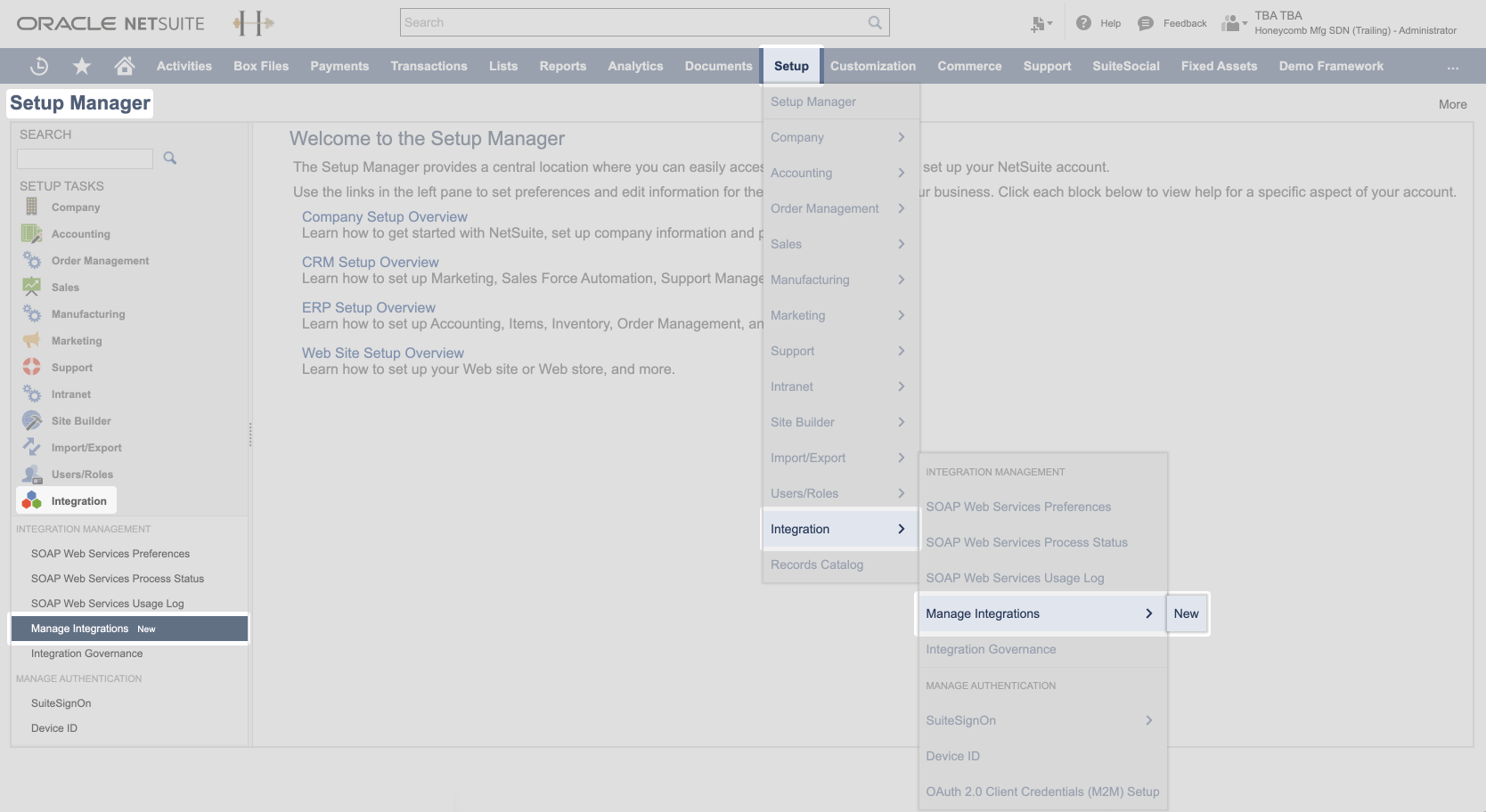

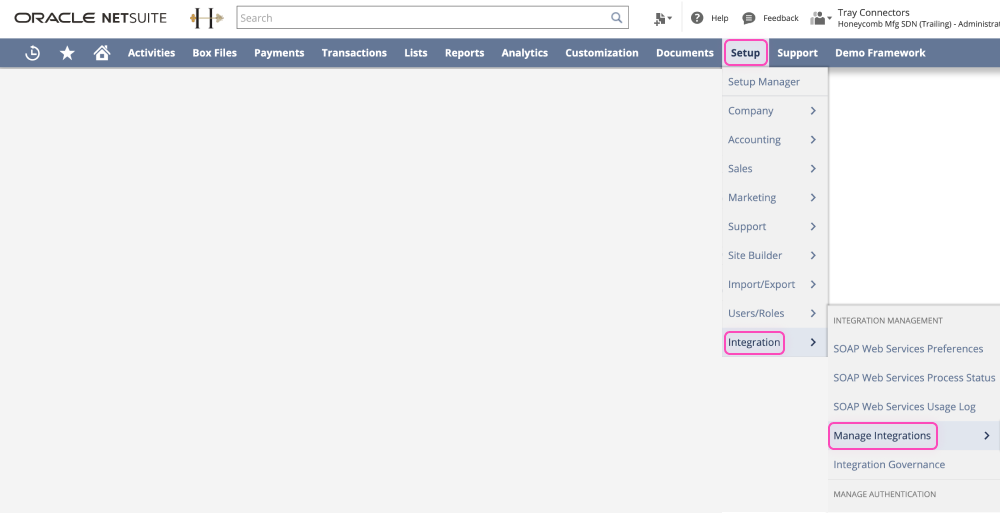

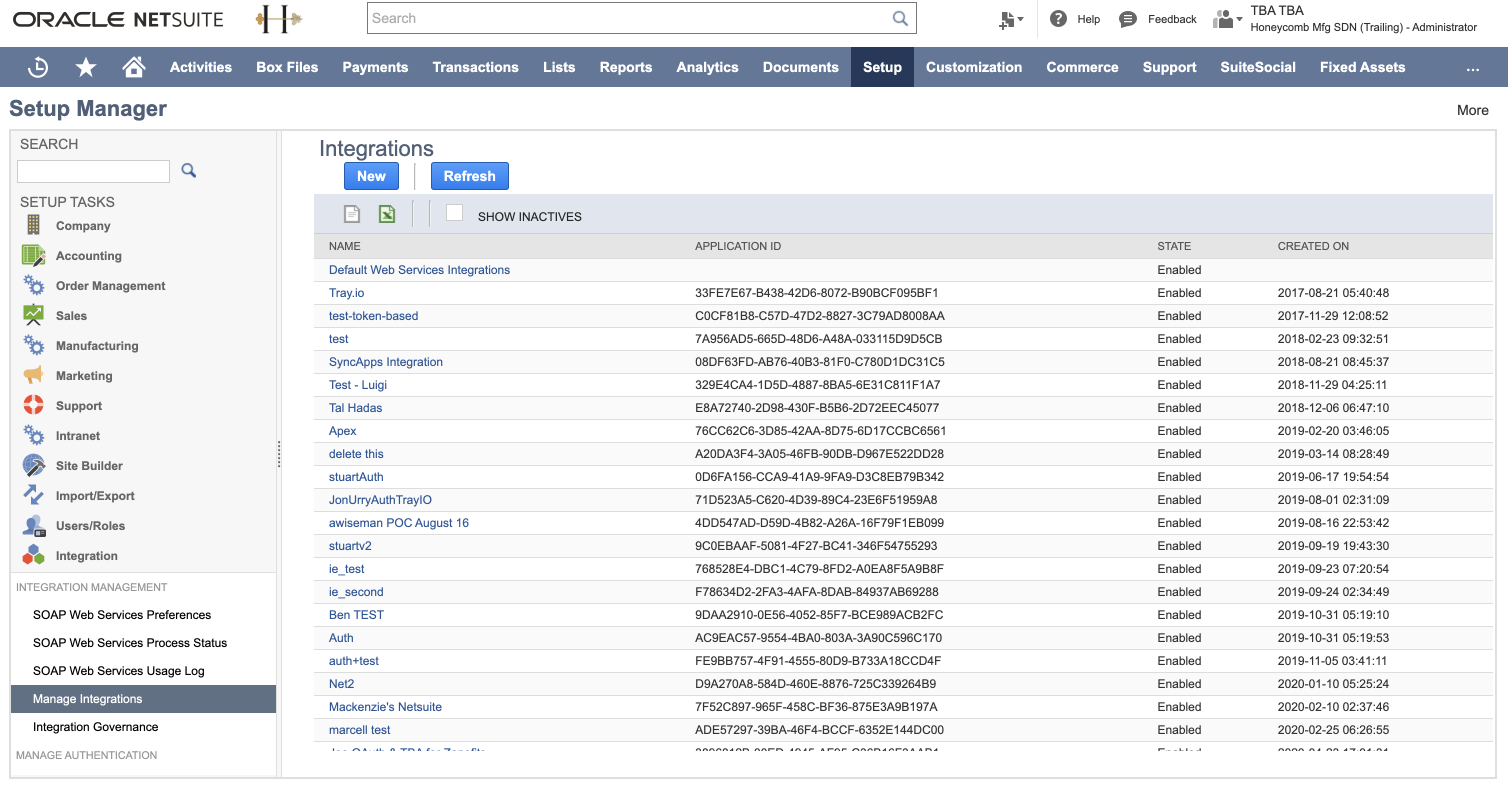

   • Create M2M integration in NetSuite (see M2M Setup Guide)

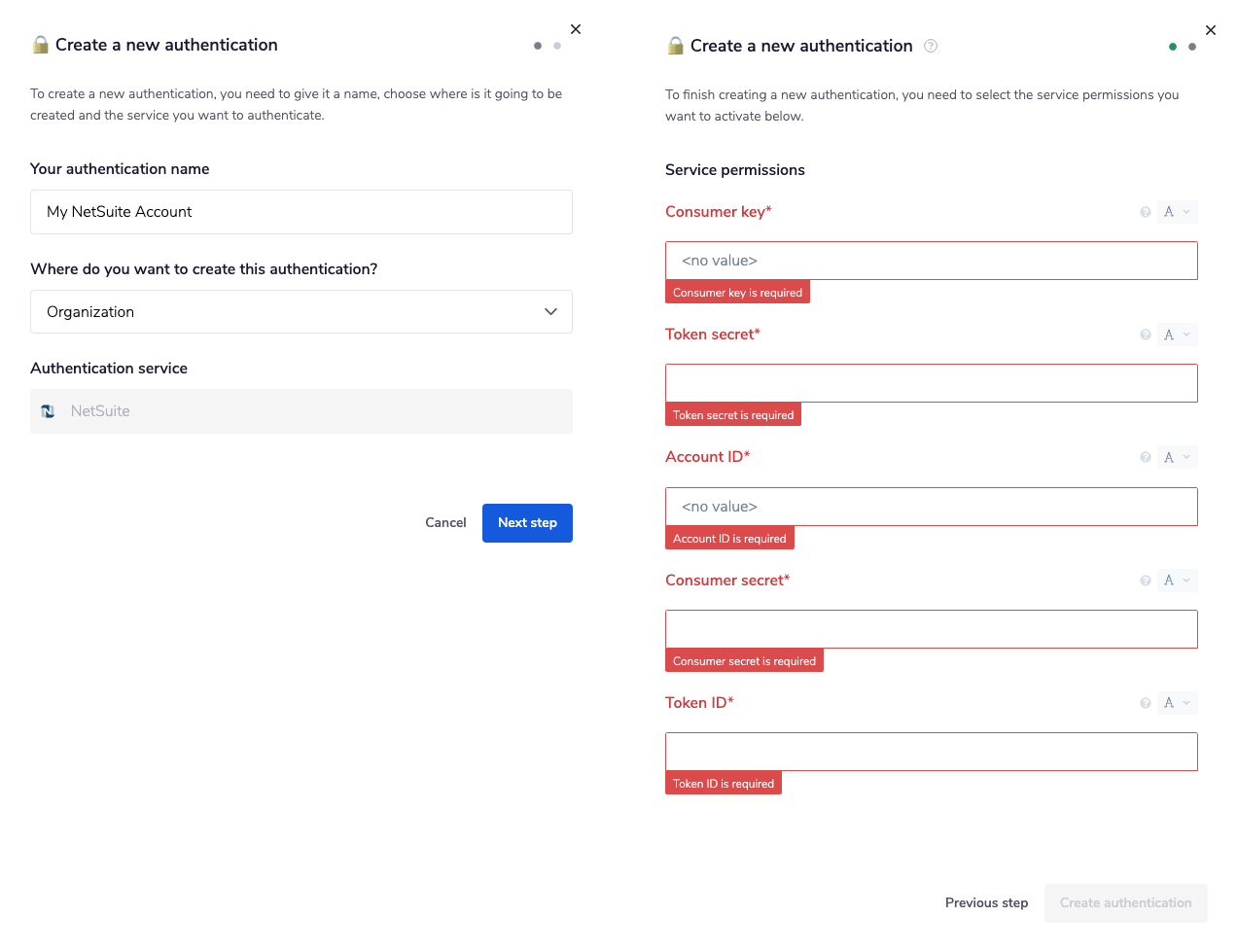

2. Create new v5.0 authentication in Tray.io

   • Navigate to the NetSuite connector authentication settings
   • Create new authentication with v5.0

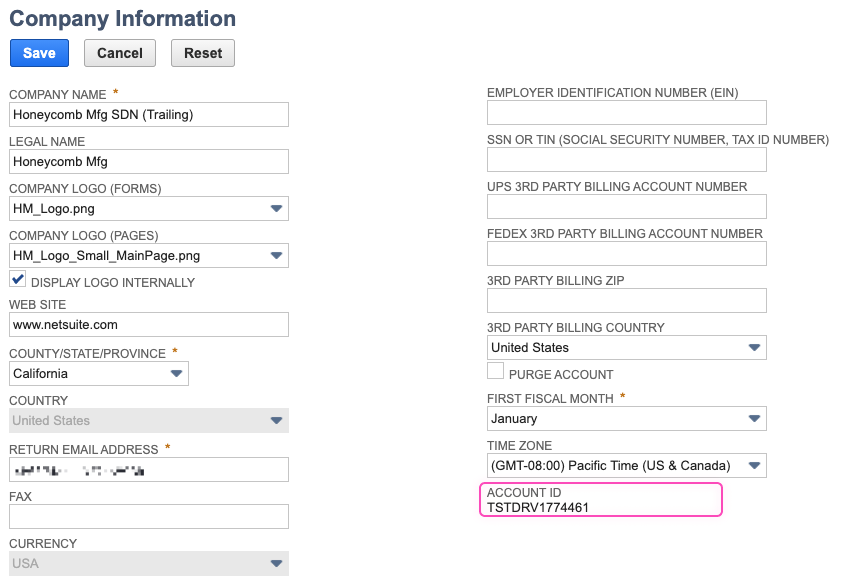

   • Enter Account ID (previously called "company")

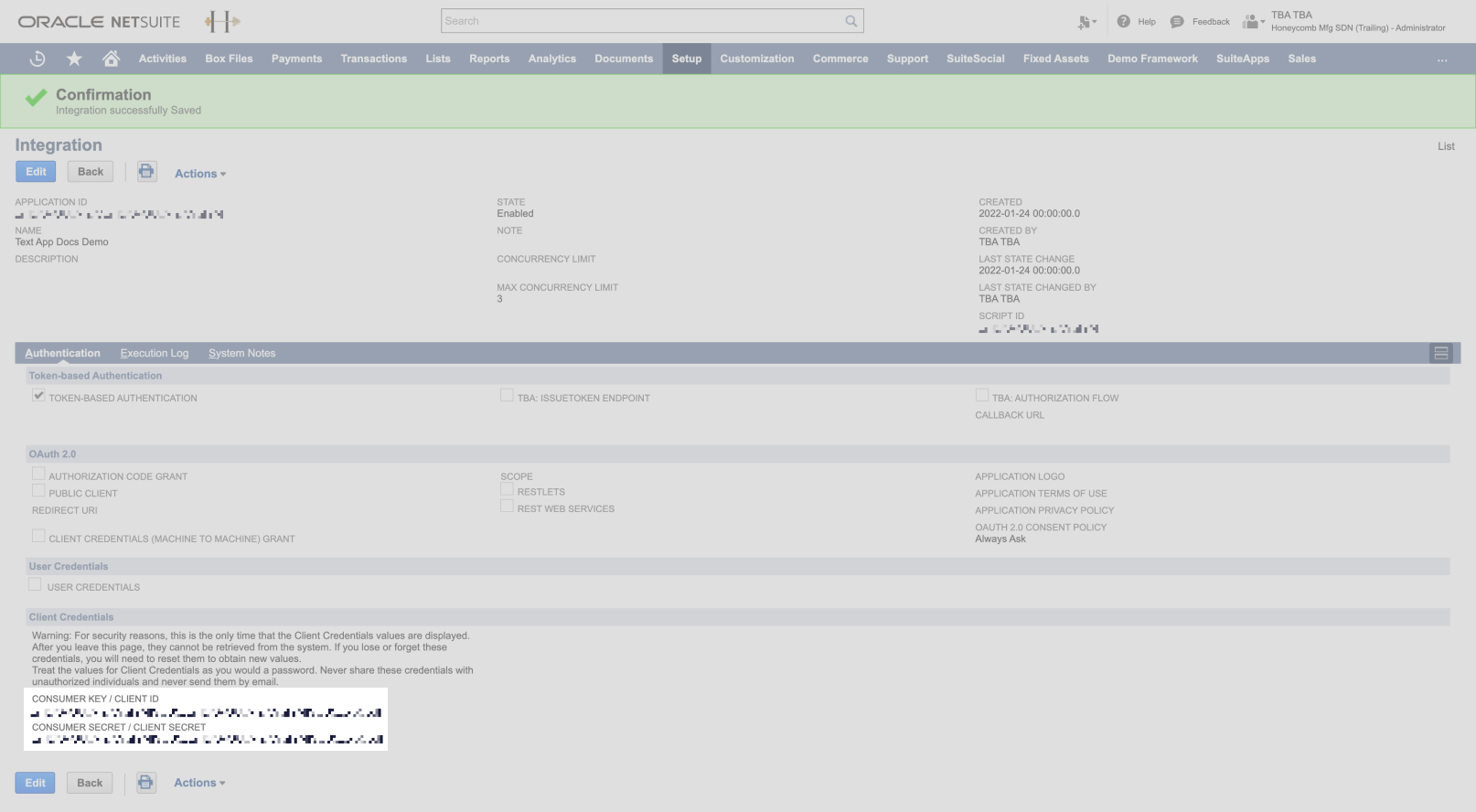

   • Enter Client ID and Client Secret from your NetSuite M2M integration
   • Enter the Certificate ID from your NetSuite M2M integration
   • Provide your Private Key for JWT authentication

3. Update existing workflows

   • Update all workflows to use the new v5.0 of the connector
   • Test each workflow to ensure connectivity
   • No operation changes required - inputs and outputs remain the same

Prerequisites

To use NetSuite REST web services with version 5.0, you must enable:

• REST Web Services - Allow REST API access
• OAuth 2.0 - Enable OAuth authentication
• OAuth 2.0 Client Credentials with Certificate-Based Authentication (M2M) - Required for v5.0
• SuiteAnalytics - Enable analytics features

Additionally, the integration must have the required permissions assigned. For detailed setup instructions, refer to NetSuite's OAuth 2.0 Client Credentials with Certificate-Based Authentication guide.

If you already have your features and permissions set up, please move straight to Stage 3: Creation.

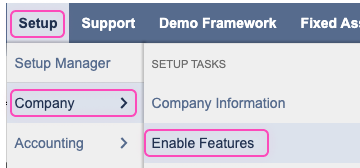

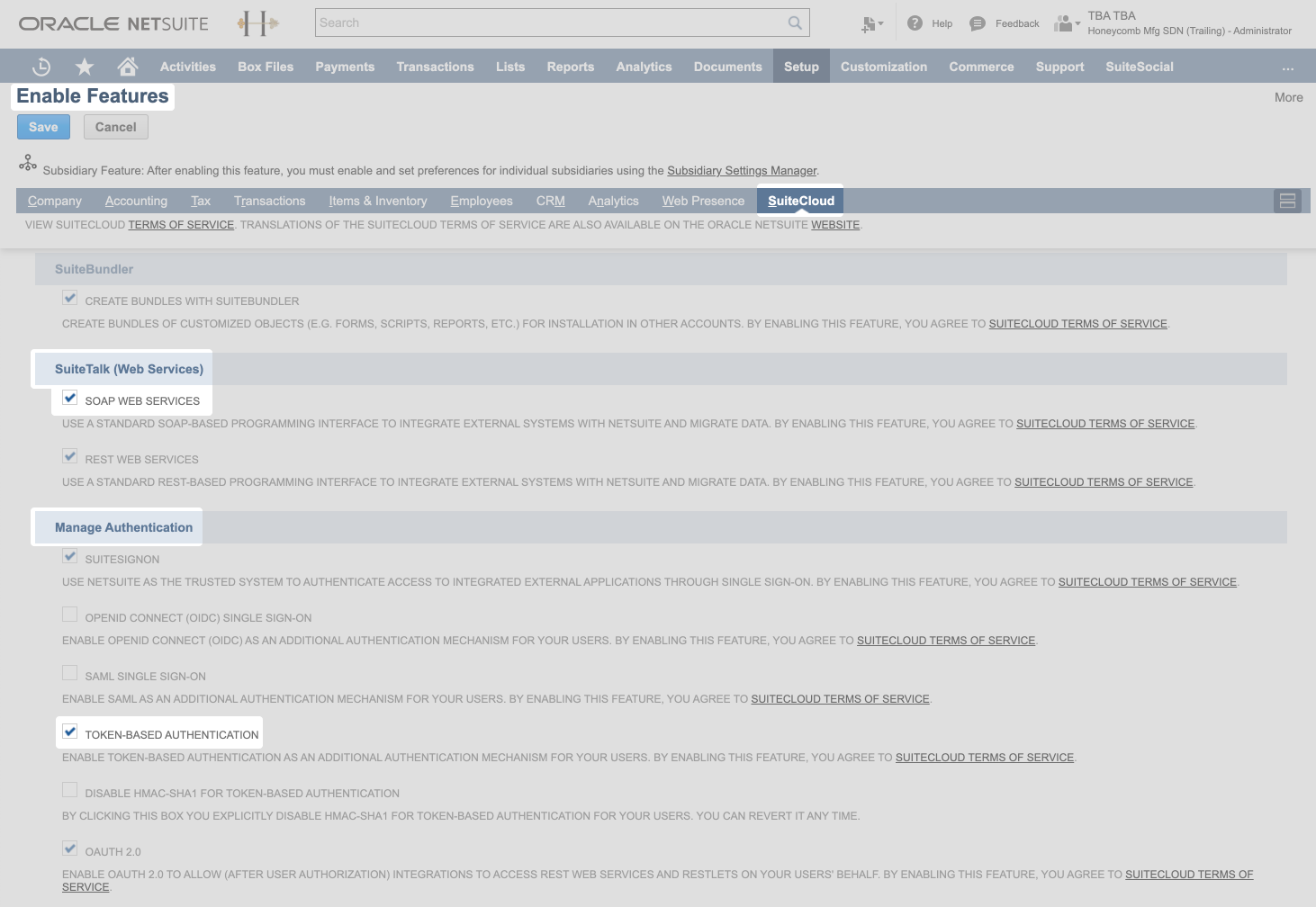

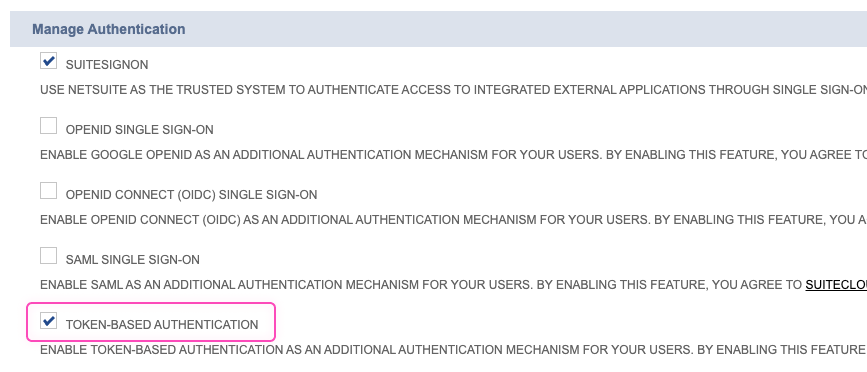

Stage 1: Enable Features

This accordion guides you through the process of enabling REST Web Services, OAuth 2.0 authentication, and SuiteAnalytics for NetSuite REST API authentication integration with Tray.io.

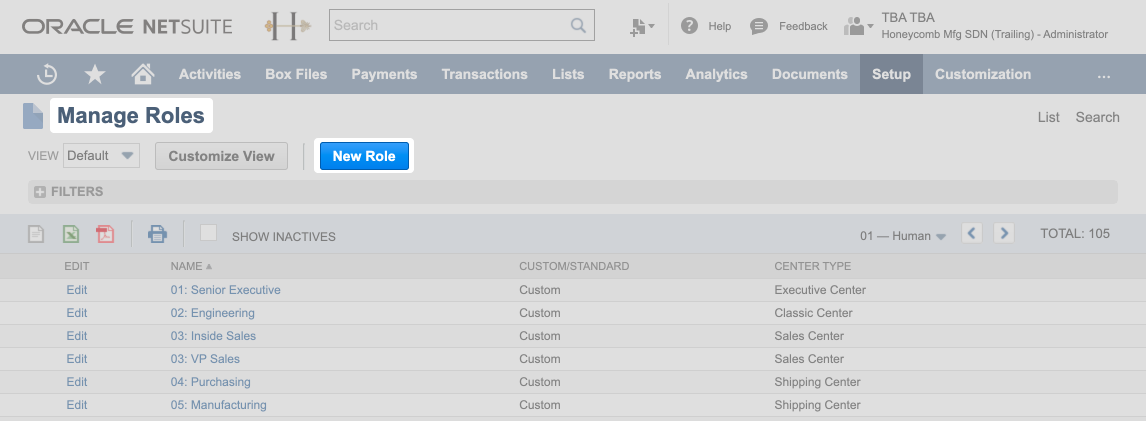

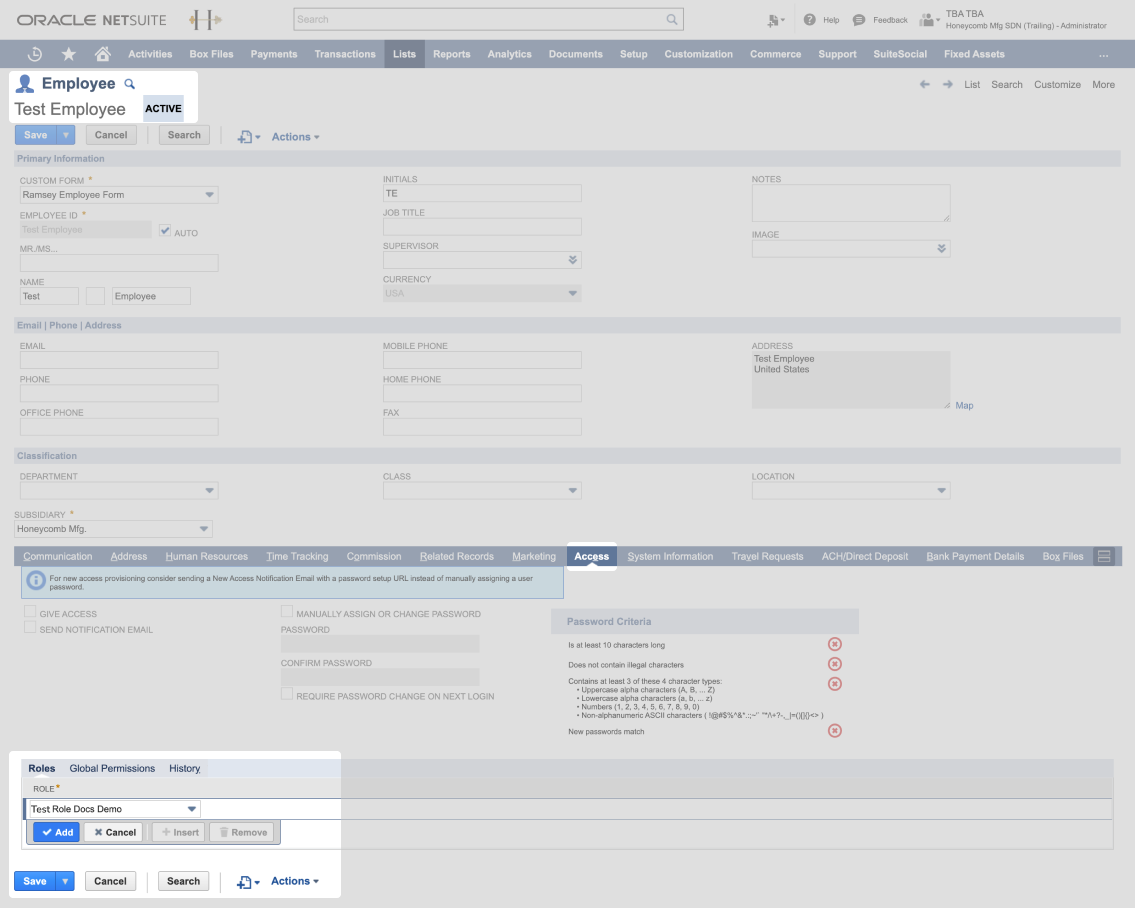

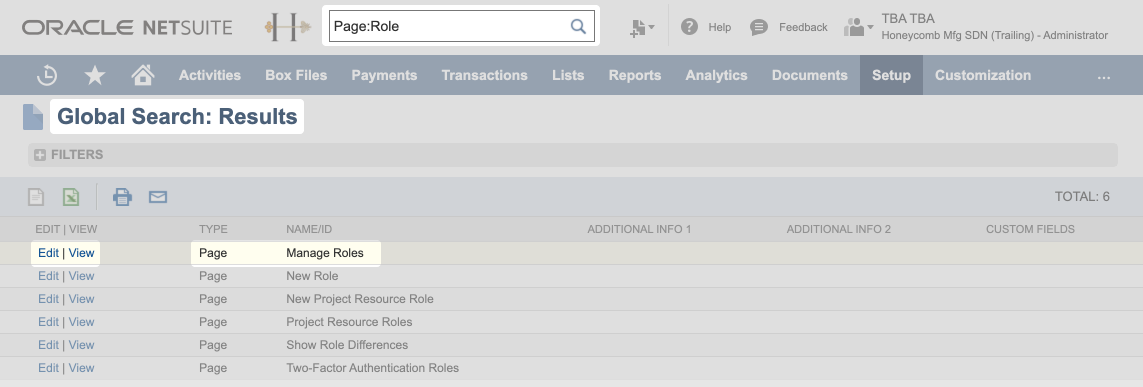

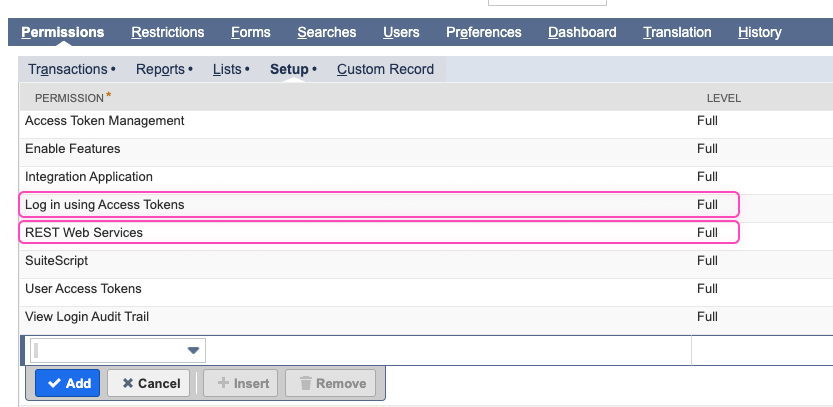

Stage 2: Enable Permissions

This accordion guides you through the process of** setting the permissions required** for the respective features enabled in the previous section.

Stage 3: Create

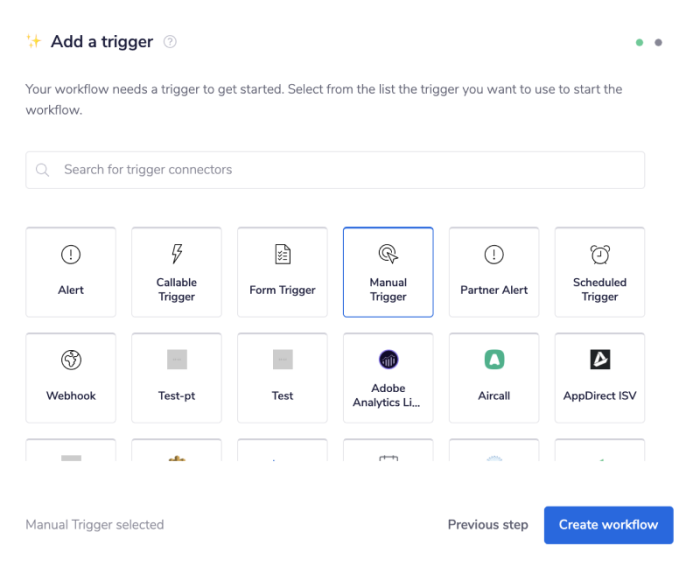

This section begins and ends in the Tray.io builder so please have your workflow space set up before continuing.

Available Operations

The examples below show one or two of the available connector operations in use. Please see the Full Operations Reference at the end of this page for details on all available operations for this connector.

New Operations in v5.0

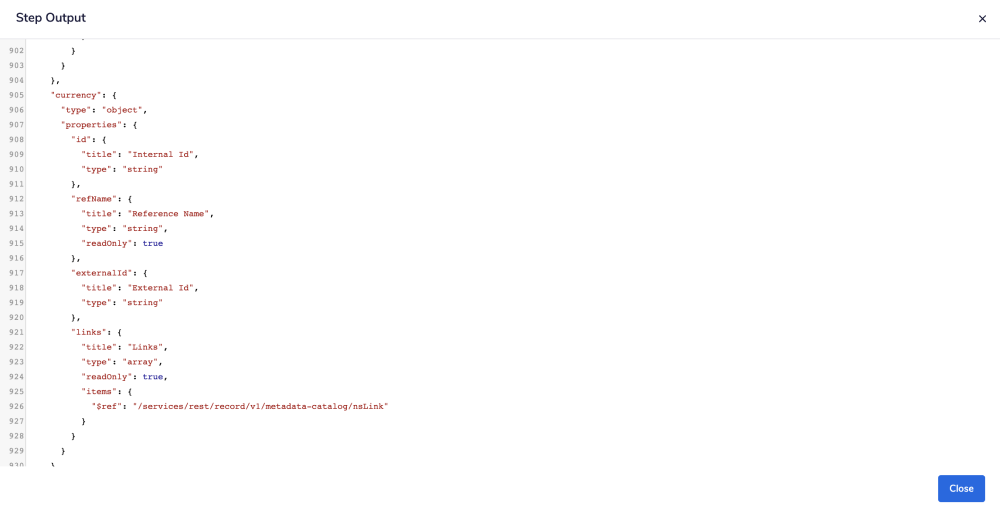

Get Currency Rate

Retrieve currency exchange rate information for multi-currency transactions and financial reporting.

Get Governance Limits

Monitor API usage and concurrency limits to prevent rate limiting and optimize integration performance.

Get Item Availability

Access real-time inventory availability information for items in your NetSuite account.

Notes on key operations

Find record

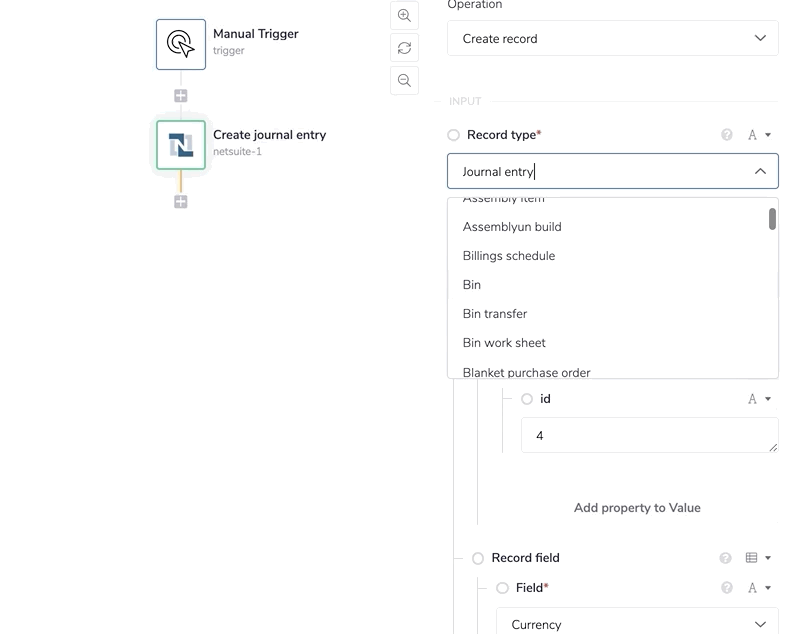

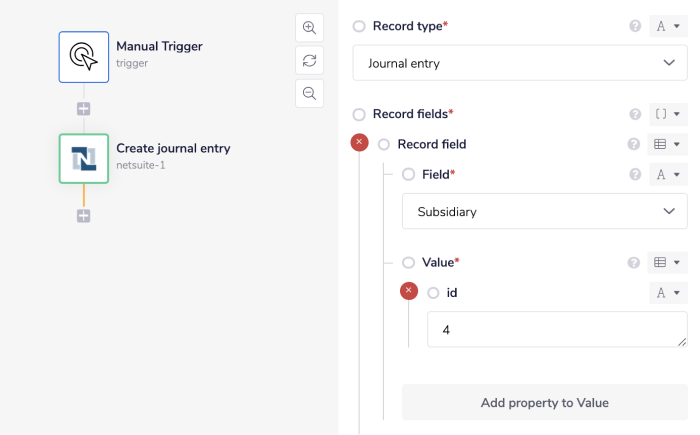

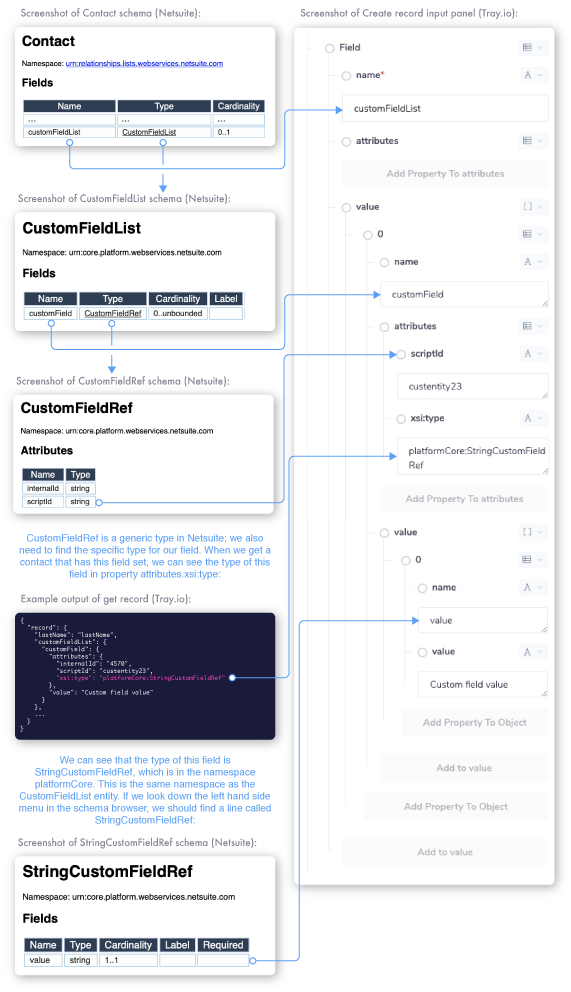

Create Record

You must be very precise when using this operation. It is critical that you keep in mind the following points:

• All field references are correctly 'typed' - object / string / boolean, etc
• There are no missing fields
• Any field requirements match the schema

Execute SuiteQL (advanced query)

You execute SuiteQL queries by sending a POST request to the suiteql resource and specifying the query in the request body after the body parameter "q". Check out the following links for more information:

• Executing SuiteQL Queries
• NetSuites SuiteQL Syntax and Examples

NetSuite Sales orders

There are 3 main points to be aware of when creating a NetSuite Sales order:

• Your associated NetSuite Role has the correct permissions.

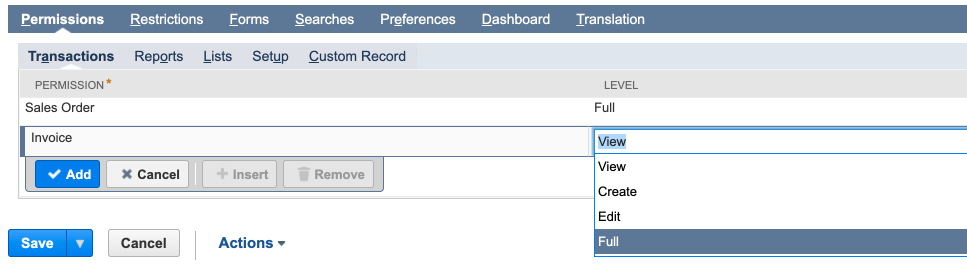

  • "NetSuite Role" -> Permissions -> Transactions: Please make sure the following 3 permission sets are added and have Level: Full for each as a general rule.
  • Sales order
  • Sales order approval
  • Find Transaction
  • "NetSuite Role" -> Permissions -> Lists: Please make sure the following permission set is added and has Level: Full as a general rule.
  • Items
• It is possible to 'use' your item within a sales order.
  • For example you may be able to create a purchase order for an item but not be able to sell it. You may get unusual error messages as a result.
• The data being sent to NetSuite is being sent in the format it requires.
  • Please see the accordion step below for a clear demonstration.

Renaming fields

Any fields customers may have renamed within their NetSuite instance will still display as their native name within any of the dropdown options available inside the Tray.io properties panel. The NetSuite UI may display your updated field name but what it is referring to in the NetSuite database will not have. Look for your endpoint in the REST API Browser and under the I****nsert record -> Request body select the clickable 'endpoint' link to see a list of Fields. This will display the native name for all the field references.

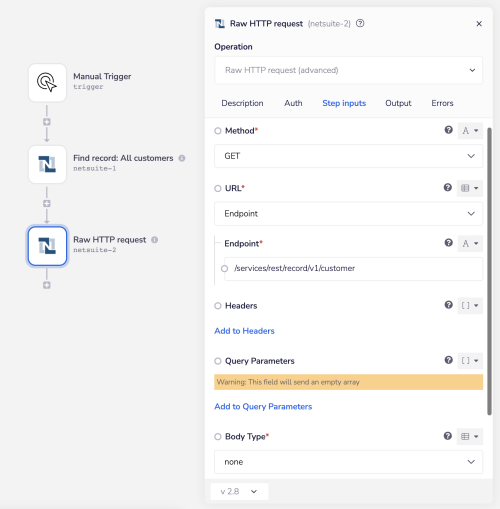

Using the Raw HTTP Request ('Universal Operation')

As of version 2.0 you can effectively create your own operations. This is a very powerful feature which you can use if you need an endpoint that is not currently provided.

Please the example below for a full walkthrough.

NetSuite REST templates

Please note that we have the following NetSuite REST templates available. These will give you pre-configured best practice ways of working with NetSuite REST and integrating it with other connectors.

Further Info (REST & SOAP)

The following sections are mainly relevant to SOAP users however there is some cross over for our REST customers. Please see the NetSuite SOAP: Further Info section for references pertaining to:

• Reverting XML schema
• SuitTalk Guides
• Appendix I: Namespace to Alias Mappings
• Appendix II: Further Documentation
